The trolley and hoist system is the lifting mechanism of an overhead crane. It includes the hoist, which is responsible for lifting and lowering the load, and the trolley, which carries the hoist along the bridge girder. In a 50-ton capacity overhead crane, this system must be carefully engineered to handle the substantial weight without compromising on speed, control, or safety.

Main components include:

Hoist motor and gearbox

Drum and wire rope or chain

Hook block and safety latch

Trolley frame and wheels

Traverse drive system

Control systems and sensors

Design Types of Trolley and Hoist Systems

There are primarily two types of trolley and hoist arrangements in overhead cranes:

1. Underhung Trolley (Suspended Type)

In this design, the trolley is suspended from the lower flange of the bridge girder. This type is generally not used in 50 ton overhead cranes due to lower load capacity limits.

2. Top Running Trolley (Rail Mounted)

In heavy-duty applications such as a 50-ton crane, the trolley usually runs on rails mounted on top of the bridge girders. This setup provides higher structural stability and load capacity, making it ideal for heavy lifting operations.

Key Design Considerations for 50-Ton Capacity

Designing a trolley and hoist system for a 50-ton overhead crane involves addressing multiple technical parameters. These include:

1. Load Distribution and Structural Strength

The entire system must be able to support not just the static weight of the load but also dynamic forces such as acceleration, deceleration, and potential shock loads. Finite element analysis (FEA) is often used to evaluate stress distribution across trolley frames and wheel loads.

2. Hoisting Mechanism and Lifting Speed

A 50-ton hoist must be designed with powerful motors and gearboxes. The lifting speed can vary depending on the application, typically ranging from 1.5 to 8 m/min. Variable frequency drives (VFDs) are often integrated for precise speed control and energy efficiency.

3. Rope Reeving System

The wire rope reeving system in 50-ton hoists is generally designed with a 4/2 or 8/2 arrangement, ensuring load balance and minimizing rope wear. The reeving design also affects the height of lift and must be matched to operational requirements.

4. Trolley Wheel Design and Material

Trolley wheels are typically made of high-strength forged steel and run on hardened steel rails. The diameter, flange design, and bearing configuration must account for high lateral and vertical loads. Anti-friction bearings or spherical roller bearings are used to minimize rolling resistance.

5. Braking System

Multiple braking systems are used for safety redundancy. This includes:

Electromagnetic brakes for the hoist motor.

Mechanical drum brakes for emergency load holding.

Over-speed protection mechanisms to prevent free fall in case of motor failure.

6. Power Supply and Cabling

Power is supplied to the trolley via festoon systems, cable reels, or conductor bars. In 50-ton cranes, special attention is given to the durability and routing of these systems to avoid wear and entanglement.

Electric Hoist or Open Winch Hoist?

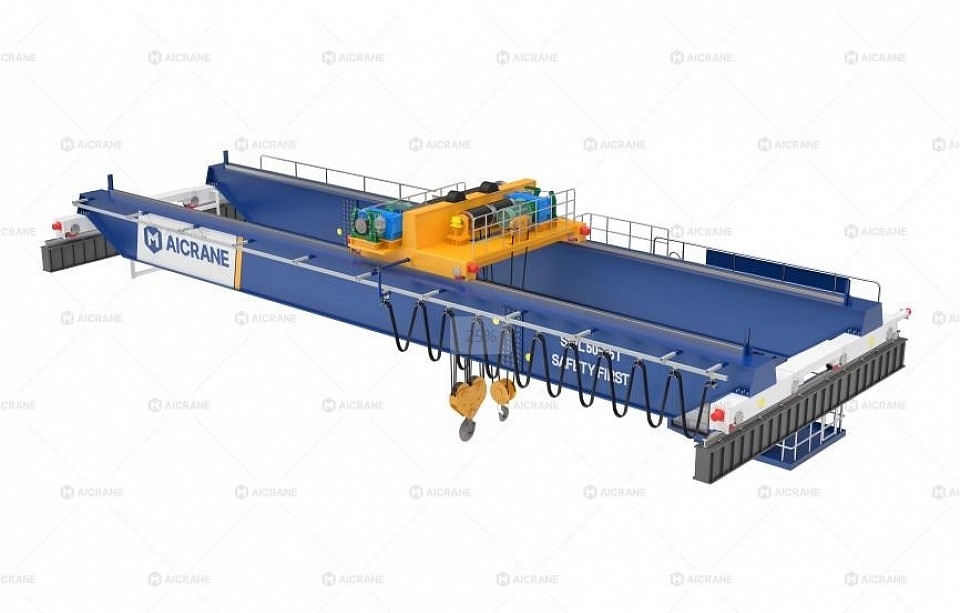

In smaller cranes, electric wire rope hoists may suffice. However, in 50-ton cranes, open winch hoists are more commonly used. These are custom-built units mounted directly on the trolley frame, providing superior lifting power, better cooling, and maintainability.

Advantages of open winch hoists in 50-ton double girder overhead cranes:

Larger rope drums for longer lifting heights

Heavier duty gearboxes

Easier access for maintenance

Higher precision with optional dual-speed or VFDs

Safety Features and Monitoring

Modern 50-ton trolley and hoist systems are integrated with advanced safety and diagnostic systems to ensure safe and smooth operation.

Key Safety Features:

Load limiters and overload protection

Limit switches for upper and lower hoist travel

Trolley travel limiters to prevent overrun

Thermal protection on motors

Anti-sway systems using software-controlled motion damping

Wireless or cabin remote monitoring

Control Systems

50-ton overhead cranes increasingly feature intelligent control systems for smoother and safer operation. Common control types include:

Pendant control for manual handling

Wireless remote control for better visibility and mobility

Cabin control for complex lifting operations requiring continuous supervision

Programmable Logic Controllers (PLCs) and Human Machine Interfaces (HMIs) are now common, enabling features like:

Diagnostics

Predictive maintenance alerts

Operation cycle counters

Data logging

Trolley Travel Mechanism

The trolley must move smoothly and precisely along the bridge. Travel speeds typically range from 5 to 20 m/min depending on application needs.

Trolley travel drives consist of:

Squirrel cage or slip ring motors

Gear reducers

Couplings and brakes

VFDs for soft start/stop

The trolley is also designed with alignment systems to minimize rail wear and wheel flange damage.

Dual Trolley Systems for Synchronized Lifting

For specific applications like large molds, turbine components, or steel coils, a dual trolley configuration may be used on a 50-ton overhead crane. This allows for synchronized lifting of large or awkward loads, with electronic synchronization between hoists to maintain level lifting and avoid twisting.

Maintenance Considerations

Maintenance access and simplicity are important in trolley and hoist design.

Key features include:

Easily accessible motor and gearbox

Lubrication points for wire ropes and gearboxes

Modular trolley components for fast replacement

Fault diagnostics via onboard systems or remote monitoring

Regular inspections are also part of safe operation, including checking:

Brake wear and adjustment

Rope wear and alignment

Wheel wear and alignment

Electrical system insulation

Conclusion

The trolley and hoist system in a 50-ton overhead crane is a complex and critical component that must be designed with attention to structural integrity, performance, and safety. Whether it's choosing between open winch or electric hoist designs, specifying the proper rope reeving, or integrating intelligent controls, each design decision affects the crane's operational efficiency and longevity.

With increasing demand for automation, precision, and heavy-duty lifting, the evolution of trolley and hoist systems continues to reflect advances in mechanical engineering, materials science, and digital technology. For users and buyers of 50-ton overhead cranes, understanding the design of the trolley and hoist system is essential to ensure the crane performs safely and reliably in its intended environment.
